PF Impact Crusher
Introduction of PF Impact crusher:
By absorbing the advanced technology from the world, Shanghai Clirik researched and designed PF series impact crusher. It can be used to deal with materials whose size below 500mm and whose compression strength less than 360Mpa. Thus, it is widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.

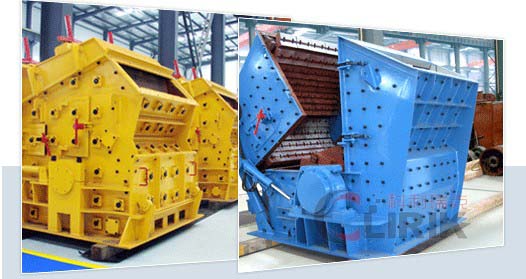

Images of PF Impact crusher:
Application of PF Impact crusher:
Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombarthite, kaolin, gypsum, and graphite, etc.
Features of PF Impact Crusher:
1, High efficient Long service life
2, Strong structure Steady performance
3, Good final products Discharging opening is adjustable
4, No-board connection Easy to disassembly and maintain
Technical data of PF Impact Crusher:
|
Model |
Rotor Φ×L(mm) |
Feed Opening(mm) |
Max Feeding(mm)) |
Capacity (t/h) |
Power (kw) |
Motor Model |
Machine Size(mm) |
|
PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
4-75 |
Y280S-4/75 |
2455×2086×2800 |
|
PF1210 |
Φ1250×1050 |
400×1080 |
350 |
60-120 |
6-110 |
Y315L1-6/110 |
2590×2050×2810 |
|
PF1214 |
Φ1250×1400 |
400×1430 |
350 |
80-160 |
6-132 |
Y315L2-6/132 |
2590×2400×2810 |
|
PF1315 |
Φ1300×1500 |
860×1520 |
350 |
120-260 |
6-200 |
Y355M3-6/200 |
2930×2760×3050 |
